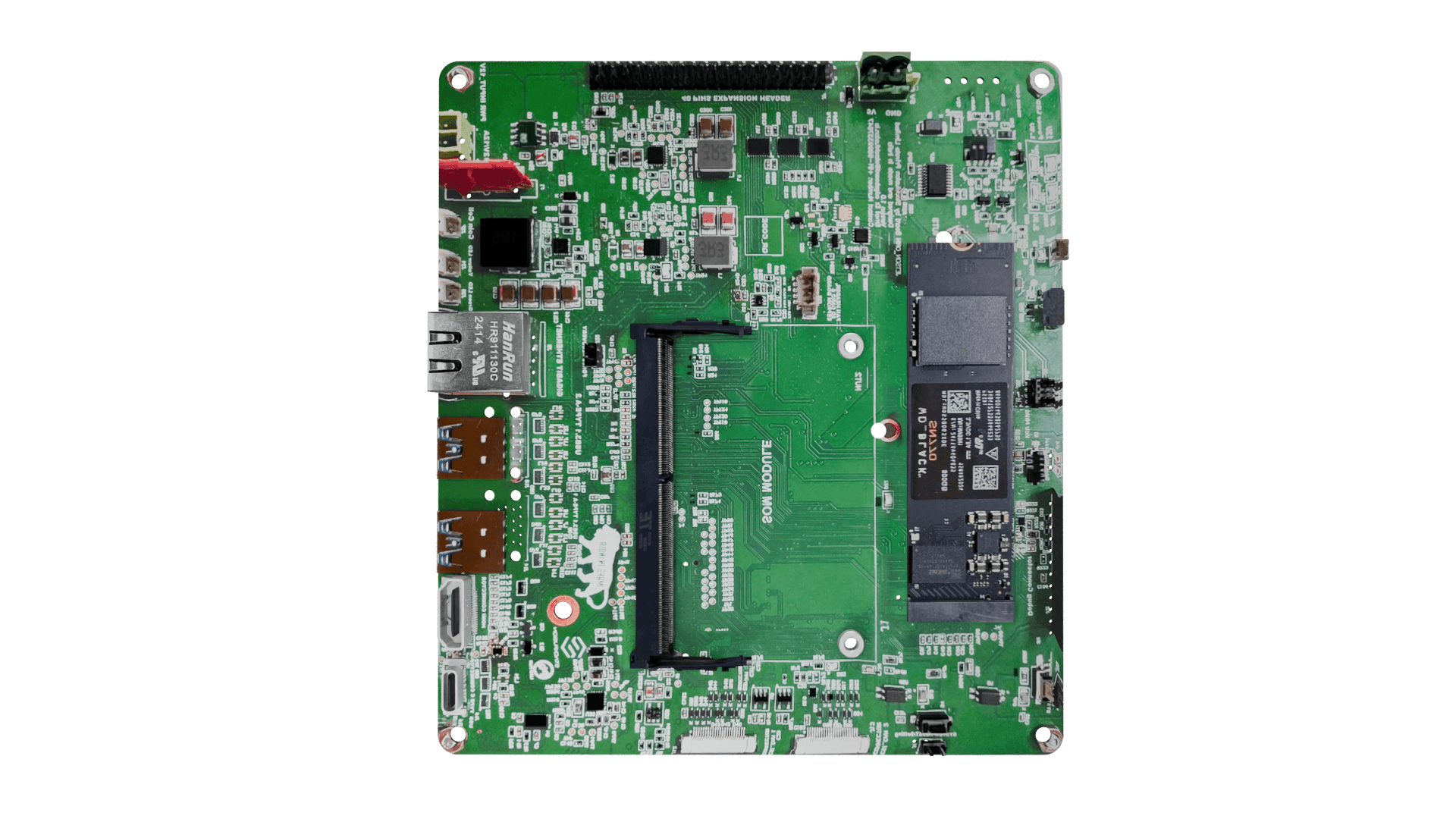

Jetson Nano

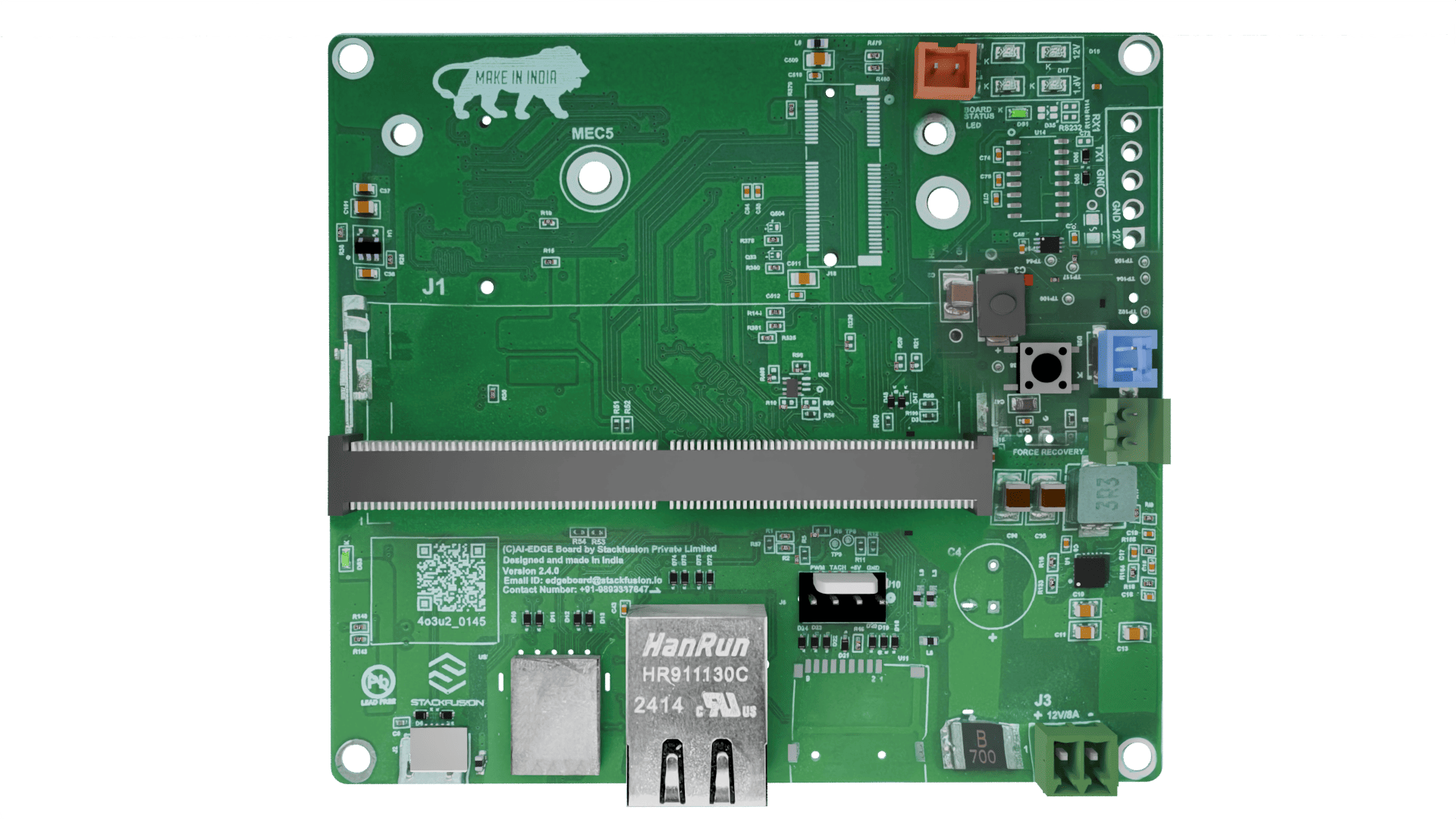

A production-ready carrier board for headless Jetson Nano, delivering stable connectivity, built-in protections, and long-term durability.
Intelligent Features
Technology That Moves With You
Edge AI Compute Core
/01
Executes AI models locally for real-time inference with minimal latency.
Intelligent Detection
/02
Processes visual and sensor inputs to identify patterns and trigger actions.
Central Control Server
/03
Manages system-wide data flow and operational intelligence.
specification sheet
Technical Specifications
USB
1 USB 3.0 Host port(single port for peripherals)
1 Micro-USB port (service/OTG depending on system configuration)
Ethernet
1× RJ45 10/100/1000 Mbps
Link/Activity LEDs (implementation dependent)
Controls / Headers
Restart Button: momentary push-button for restart/reset
Force Recovery Pins: header pins to enter recovery mode for flashing/service
Input Power
Input Voltage 12V DC (nominal)
Input Current up to 3A
Recommended Supply regulated 12V DC adapter, ≥3A
Auxiliary Output
5V Output Point: 5V DC @ 1A max
Intended for low-power external loads (ensure total load ≤ 1A)
Protections
Reverse voltage protection on DC input
Over-current protection on power path (and/or ports depending on implementation)
Operating Environment
Operating Temperature: +10°C to +35°C
Operating Humidity: 20% to 80% RH, non-condensing
Altitude: up to 2000 m
Environment Type: indoor, protected from direct rain/spray; low dust exposure
Storage Environment
Storage Temperature: +5°C to +40°C
Storage Humidity: 20% to 80% RH, non-condensing
Store in carton/ESD-safe packaging; avoid condensation, water exposure, corrosive vapors
